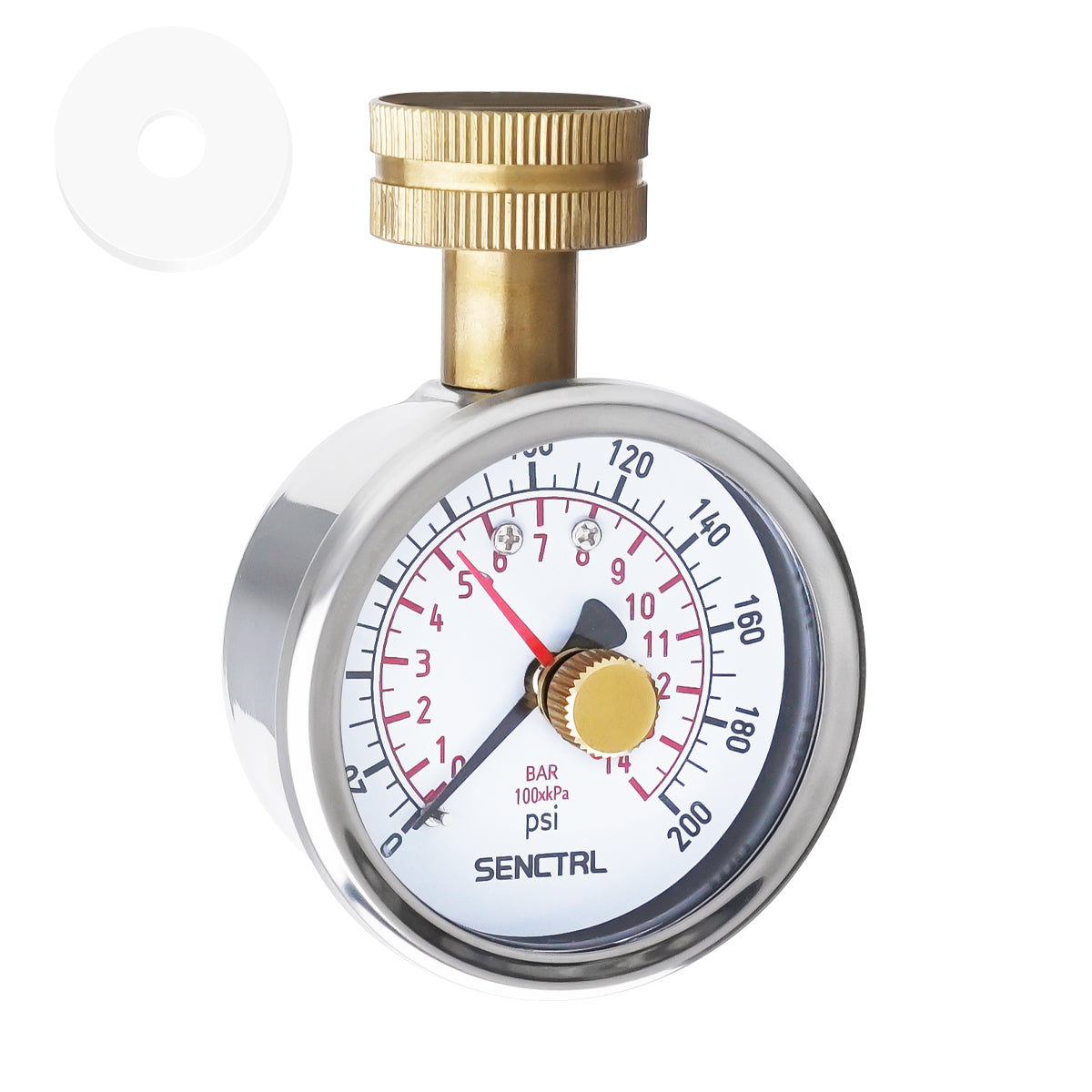

0-200 Psi Water Pressure Gauge with Lazy Hand, 3/4" GHT, 2.5" Dial, Lead Free

Share

0-200 Psi Water Pressure Gauge with Lazy Hand, 3/4" GHT, 2.5" Dial, Lead Free

Share

Product form

The SENCTRL water pressure gauges have stainless steel or low-lead brass wetted parts for use on applications involving drinking water.... Read more

SKU: Y.6WDL13.0/200#.LH

$20.00$15.99

Free Shipping Within The Lower 48 US States

No hassle returns, 30 days return

Shipped today? Order within: Jan 09, 2026 17:00:00 -0800

Description

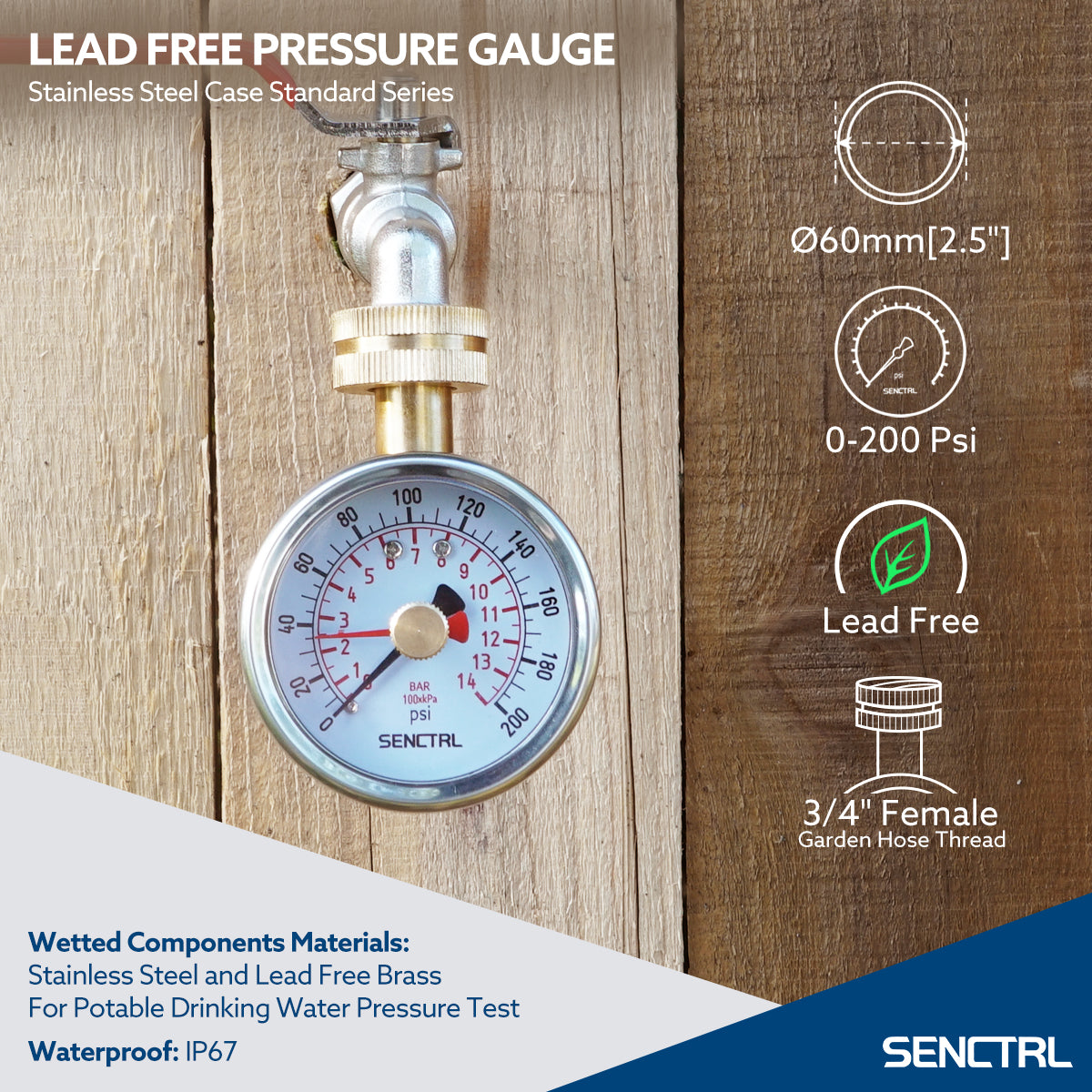

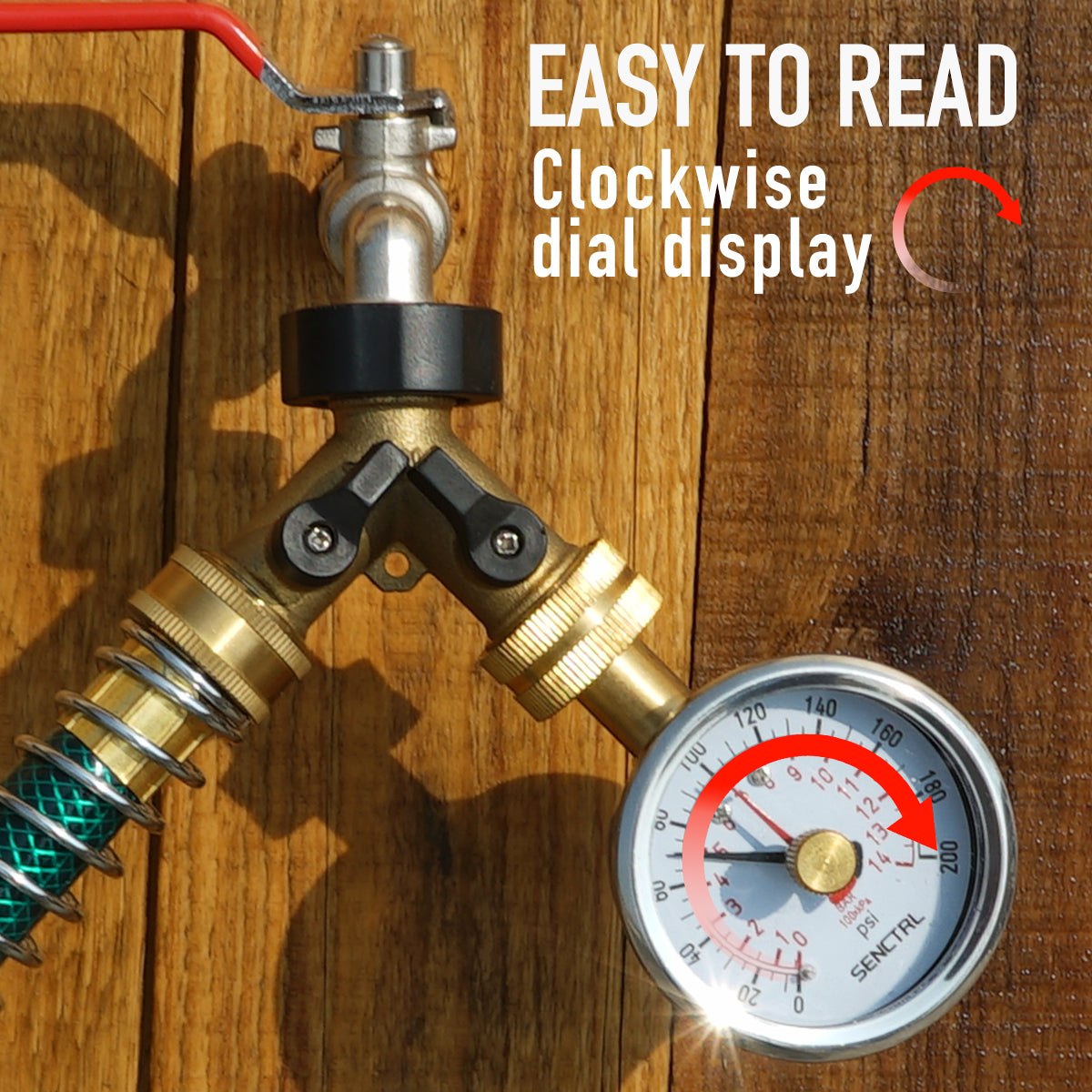

The SENCTRL water pressure gauges have stainless steel or low-lead brass wetted parts for use on applications involving drinking water. The red max pointer allow you to record spikes in pressure when you are away from the gauge. Adopt 3/4" hose connection which can be easily attaches to outdoor hose bibb or water heater drain.

Specifications

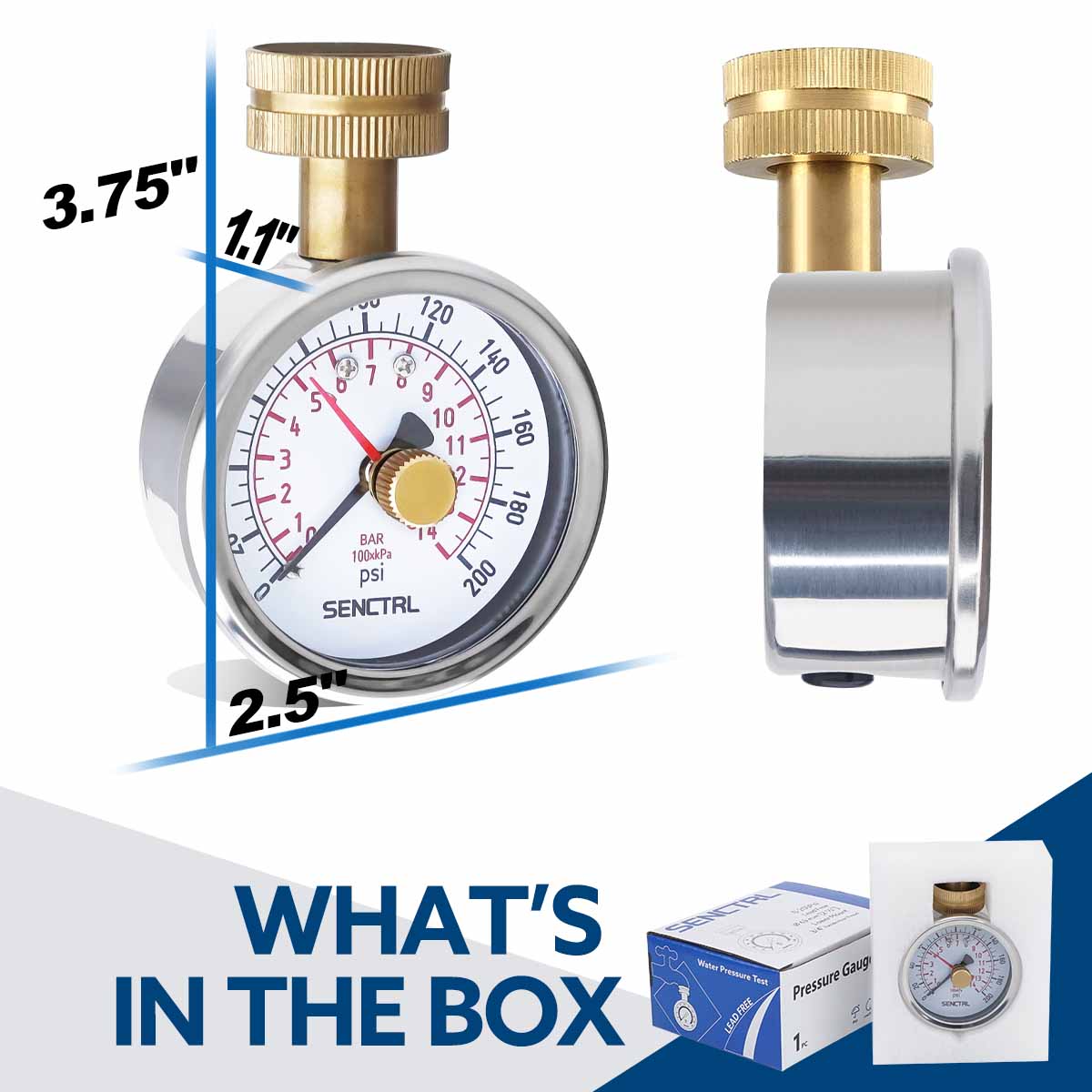

Dial Size: 2.5" (63 mm)
Mount Location: Lower Mount
Connection Size: 3/4" GHT
Series: PRV-Tex
Dry: No liquid filled
Wetted Parts: Lead Free

Pros and cons

Robust design
Reduce fogging inside
IP67 grade waterproof

More Specifications

Performance
Measuring principle: Bourdon tube
Indication accuracy: 2.5%
Scale Range: 0-200 Psi
Dry: No liquid filled
Ingress protection: IP67
Waterproof: Reduce fogging inside
Pressure limitation:
- Steady: 3/4 x full scale value
- Fluctuating: 2/3 x full scale value
- Short time: Full scale value
Physical
Dial Size: 2.5" (63 mm)
Case Materials: Stainless steel 304L
Bourdon tube Materials: Copper alloy (Lead Free)
Process connection Materials: Copper alloy (Lead Free)
Dry: No liquid filled
Process Connection Size: 3/4" GHT
Process Connection Location: Lower Mount
Dial: Aluminium, white
Pointer: Aluminium, black
Window: Polycarbonate, crystal-clear
Lazy Hand: The red pointer (record pressure spikes)
Sealing Ring Material: Food grade silicone
Environmental
Permissible Medium temperature: 140 ℉/60 ℃ maximum
Permissible Ambient Temperature: -40 to 140 ℉/-40 to 60 ℃

WETTED COMPONENTS

Bourdon Tube: Stainless steel 304L

Process Connection: Brass

Applications

+ For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Pumps and compressors
- Filter regulators
- Fluid power equipments
- Pool and spa filters
- Hydraulics and pneumatics
- OEM equipment
- Beverage dispensing equipment, coffee espresso
- Industrial machinery
- Outdoor use
